Your Trusted Partner for API Tanks and ASME Pressure Vessels

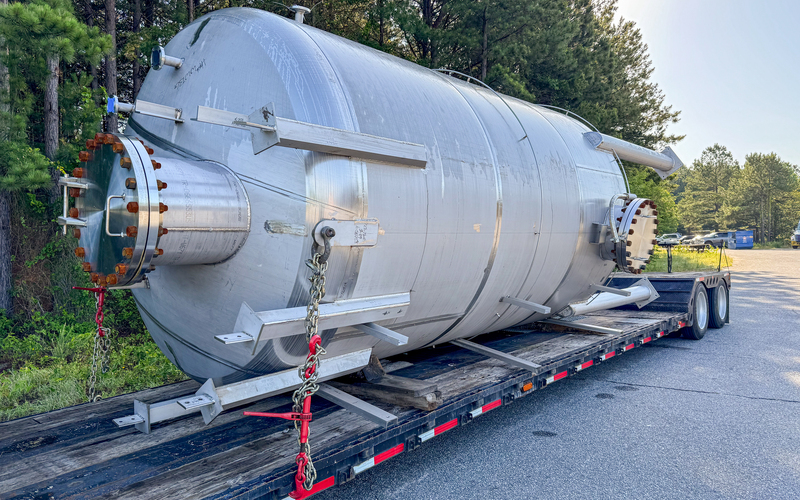

At Tate Metalworks, we build custom tanks and pressure vessels in every size and design. Projects that are around 14' and smaller in diameter are typically built at our facility in Roebuck, SC and delivered to your site ready for installation. Larger tanks and vessels are erected on-site at your location. We mobilize teams nationwide to provide industries with custom-built API tanks and ASME pressure vessels. We will work with you to find the best solution for your process. Limited access due to existing equipment or buildings, time constraints, or last-minute changes to nozzle locations are obstacles we have dealt with many times. We are ready to work with you whatever your challenges may be, and we have a proven track record of success.
API Storage Tanks
Tate Metalwork offers top-of-the-line API storage tanks designed and manufactured to meet the rigorous industry standards set by the American Petroleum Institute. Our commitment to quality ensures that you receive the highest-grade tanks available, backed by comprehensive support from the initial design phase to final installation.
API 650 Tanks
API 650 tanks are cost-effective and have large storage capacities, making them ideal for many industries and applications. Industries that commonly utilize API 650 storage tanks include chemical, agro chemical, pulp & paper, biofuels, petrochemical, and wastewater treatment.
Common Configurations
In addition to the structural features below, API 650 storage tanks can be designed with accessories such as insulation support, ladders, spiral stairs and platforms to optimize its design to fit your space and operations.
- Flat Bottom Tanks: Ideal for maximizing storage capacity and cost-effectiveness
- Sloped Bottom Tanks: Effective for drainage of viscous liquids
- Umbrella Roof: Economical option that provides water drainage and vapor space
- Dome Roof: Structural strength to resist internal pressure and handle volatile liquids
- Flat Roof: Cost-effective solution that is easy to access for maintenance and inspection
- Column Supported Cone Roof: Cost-effective for low-pressure storage
- Inverted Cone Roof: Minimizes evaporation and commonly used for volatile fluids
- Double Wall: Ideal for hazardous or sensitive materials with extra environmental protection
Common applications
- Stainless steel tanks
- Carbon steel tanks
- Mixing tanks
- Storage tanks
- Process tanks
- Wastewater treatment tanks
- Chemical storage tanks
- Biofuel storage tanks
- and more!
API 650 tanks are best for:
- Atmospheric or low-pressure storage (up to 2.5 psi)
- Liquids stored at temperatures up to 500°F (260°C)
- Tanks of all sizes from small shop-built tanks to large field erected tanks 100+ ft in diameter
- Storage for large volume of liquids in excess of 5 million gallons.
- Vertical cylindrical tanks with flat bottoms, self supporting umbrella roofs or column supported roofs
API 620 Tanks
API 620 tanks offer the advantage of storing products at elevated pressures and reduced temperatures compared to API 650 tanks. Industries that commonly utilize API 620 storage tanks include chemical, agro chemical, pulp & paper, biofuels, petrochemical, waste water treatment, and cryogenic storage.
Common Configurations
In addition to the structural features below, API 620 storage tanks can be designed with accessories such as insulation support, ladders, spiral stairs and platforms to optimize its design to fit your space and operations.
- Flat Bottom Tanks: Ideal for maximizing storage capacity and cost-effectiveness
- Cone Bottom Tanks: Perfect for efficient drainage and easy cleaning
- Dished Head: Efficient for containing pressure while optimizing internal volume & material usage
- Umbrella Roof: Economical option that provides water drainage and vapor space
- Flat Roof: Cost-effective solution that is easy to access for maintenance and inspection
Common Applications
- Cryogenic liquid storage of oxygen, hydrogen and ammonia
- Liquefied Natural Gas (LNG)
- Liquefied Petroleum Gas (LPG)
- Biogas
- Specialty Gases
- and more!
API 620 tanks are best for:
- Low-pressure storage (up to 15 psi)
- Suitable for liquids stored at temperatures up to 250°F (121°C)
- Typically for large-diameter tanks that are often field-erected
- Storage of a large volume of liquids in excess of 5 million gallons
- Various shapes beyond just vertical cylindrical tanks and horizontal tanks like silos and cone bottom tanks and dished head roofs
API 653 Standard Repair & Reconstruction
API 653 plays a critical role in ensuring the integrity and longevity of your above-ground storage tanks. At Tate Metalworks, we specialize in providing expert API 653 tank repair and reconstruction, with a focus on bottom, shell, and roof replacements. Our services ensure that your storage tanks remain compliant with industry standards while minimizing downtime and extending the life of your assets.
ASME Pressure Vessels & Reactors
Tate Metalworks’ ASME pressure vessels are engineered for excellence, meeting the highest safety and quality standards outlined in ASME Section VIII, Division 1 of the ASME Boiler and Pressure Vessel Code.
Industries where ASME pressure vessels are most commonly found for product processing include chemical, agro chemical, advanced recycling, biofuels, petrochemical, pulp & paper, bioplastics, renewable natural gas (RNG), pharmaceutical, coatings, and foam.
Common Configurations
In addition to the structural features below, ASME vessels & reactors can be designed with accessories such as insulation support, ladders, spiral stairs and platforms to optimize its design to fit your space and operations. Furthermore, half pipe jackets, dimple jackets and internal coils can be included depending on your processing needs.
- Flanged & Dished Head: A common, yet versatile, choice for pressure vessels
- 2:1 Elliptical Head: Elongated shape that is good for handling internal pressure
- Hemispherical Head: Strongest shape and ideal for high pressures
- Leg Supported Bottom: Economical for smaller vessels with easy access underneath
- Skirt Supported Bottom: Distributes weight evenly, which is ideal for large vessels
- Half-Pipe Jackets: Simple yet efficient for heating or cooling
- Dimple Jackets: Larger surface area for enhanced heat transfer
Common Applications
- Pressure vessels
- Reactors
- Reactor vessels
- Pyrolysis reactors
- Bioreactors
- Distillation columns
- Jacketed tanks
- OEM vessels
- Reactor vessels
ASME pressure vessels are best for:
- High pressure storage up to 3,000 psi
- Suitable for processing liquids at temperatures in excess of 800°F (427°C) and more depending on the metallurgy
- Suitable for shop built vessels to large field erected columns and towers over 100 feet in height.
- Best for vertical or horizontal cylindrical tanks with dished bottoms and top heads and either leg or skirt supported.
Explore our Project Portfolio
Tate Metalworks has 50+ years of proven success with our clients. Take a look at some of our favorite projects and designs.
We are a Trusted Advisor and Long-Term Partner for Your Company. Our Differences:
Frequently Asked Questions About Our Products
-
What grades of steel does Tate work with for custom fabrication?
We pride ourselves in our experience with Austenitic Stainless (304 and 316) and Austenitic-ferritic steel (Duplex: 2101, 2202, 2303, 2205, 2507). We also have experience with AL6XN, 904L, Hastelloy and many other alloys. We also fabricate and erect with carbon steel. Learn more about our materials of construction.
-
What size shop tanks does Tate Fabricate?
We specialize in shop tanks and vessels ranging in diameter from 6–14 feet and lengths over 200 feet.
-
Does Tate construct its own field-erected Tanks?
Yes, our field crews are all Tate Metalworks employees who erect our field tanks nationwide.
-
How long does it take to receive a quote for a custom storage tank or ASME pressure vessel?
We strive to have our proposals to you within 2–3 weeks.
Tate serves clients Nationwide, from our Headquarters in the Upstate of South Carolina.
